Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

POE 1*FE(802.3af) Fiber Media Converter

Type:POE2001-af Message

Description:1 * FE fiber optic transceivers，802.3af POE function，Output power 15.4W

Product Description
              This series of products are IEEE802.3 Ethernet media converter, can realize transformation between 1 10/100Base-T twisted pair and 100Base-FX fiber optic medium or extension of the network transmission, mainly used for fiber optic network distance (20/40/60/80/120 km) transmission.
               Ethernet port to provide IEEE802.3af power supply function, supported by the wireless access point 5 Ethernet cable (AP) power supply or IP phones and other devices.
Functional Properties
? automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
? device provides an Ethernet port, an Ethernet optical port;
? PSE power company for Ti chip, high stability;
? Ethernet port supports standard IEEE802.3af Power;
? Ethernet port maximum power 15.4W;
? support full and half duplex network communication, with auto-negotiation capability;

? VLAN support the transmission of long packets can support IEEE802.10 protocol products matching

      switches used to support up to 1600-byte Ethernet packets;


Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm, 1550nm

    Interface rate:              100 M, half/full duplex

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u Ethernet POE characteristics
    PoE standard: IEEE 802.3af (port output power 15.4W)
    PoE type: the end of cross connection (optional for mid span)

    PoE port: port output power of 15.4W (IEEE802.3af)
    PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       136X131X31mm( WX DXH))

   Piece Weight: 1KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

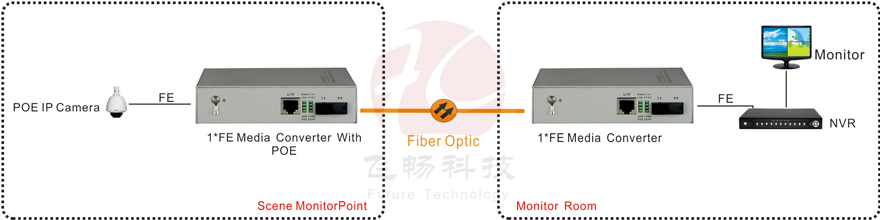

Application Scheme

Applications


DataSheet Download
?
