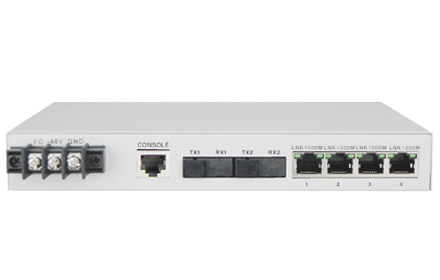

2 Optical + 4UTP Cascade GE Converter

Type:FCMJ-G4 Message

Description:2*GE+4*1000base-s/Lx Ethernet Switch ，Can chain type network ，with the anti death monitoring automatic reset function

Product Description
              The device provides 4Channel 10M/100M /1000M Ethernet interface master fiber interface and backup interface. This four Ethernet interface is switch interface can be cascaded through 2 fiber interface convenient for chain group network support VLAN.
Functional Properties

Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

Ø   Device provides 4 Ethernet UTP 2 Ethernet optical port

Ø   Support full-duplex and half duplex network communication with auto-negotiation capability;

Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied with IEEE802.10 protocol

Ø   Effectively isolate network conflicts and broadcast packets have broadcast storm prevention function

Ø   Multiple devices can be cascaded to Ethernet network







Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm 1550nm

    Interface rate:              100 M half/full duplex

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

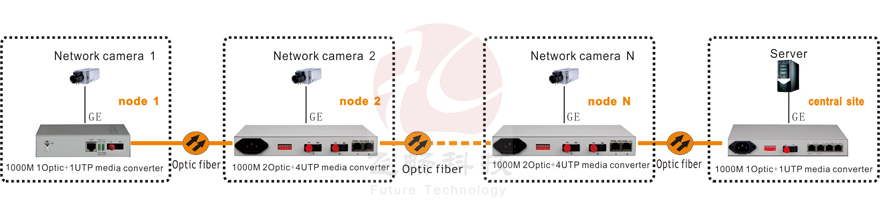

Application Scheme

Applications



DataSheet Download
?
